(click thumbs for bigger pics)

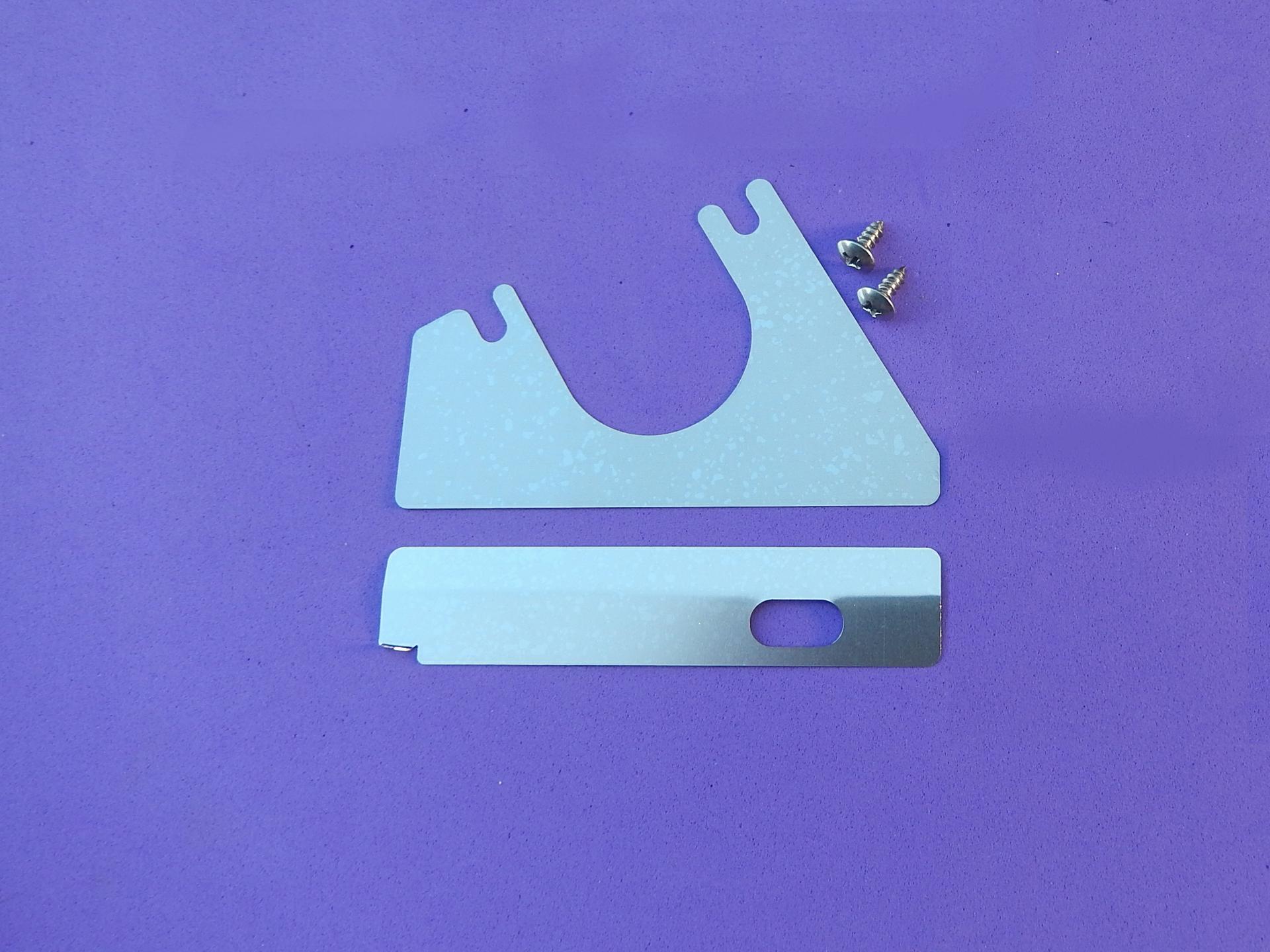

Made from Cliffy's™ Hyperthin™ stainless steel to assure no affect on ball roll yet still provide the ultimate in protection from wear!

Angle the deflectors and shield your Star Wars for only $75!

Shipping cost not included in prices. Ships via USPS or GlobalPost

Click icon to email for order info!
(will open your system default email program)

Thanks to Martin Reynolds for his help in designing these and Erik S. for the testing and for making this cool web page! :)

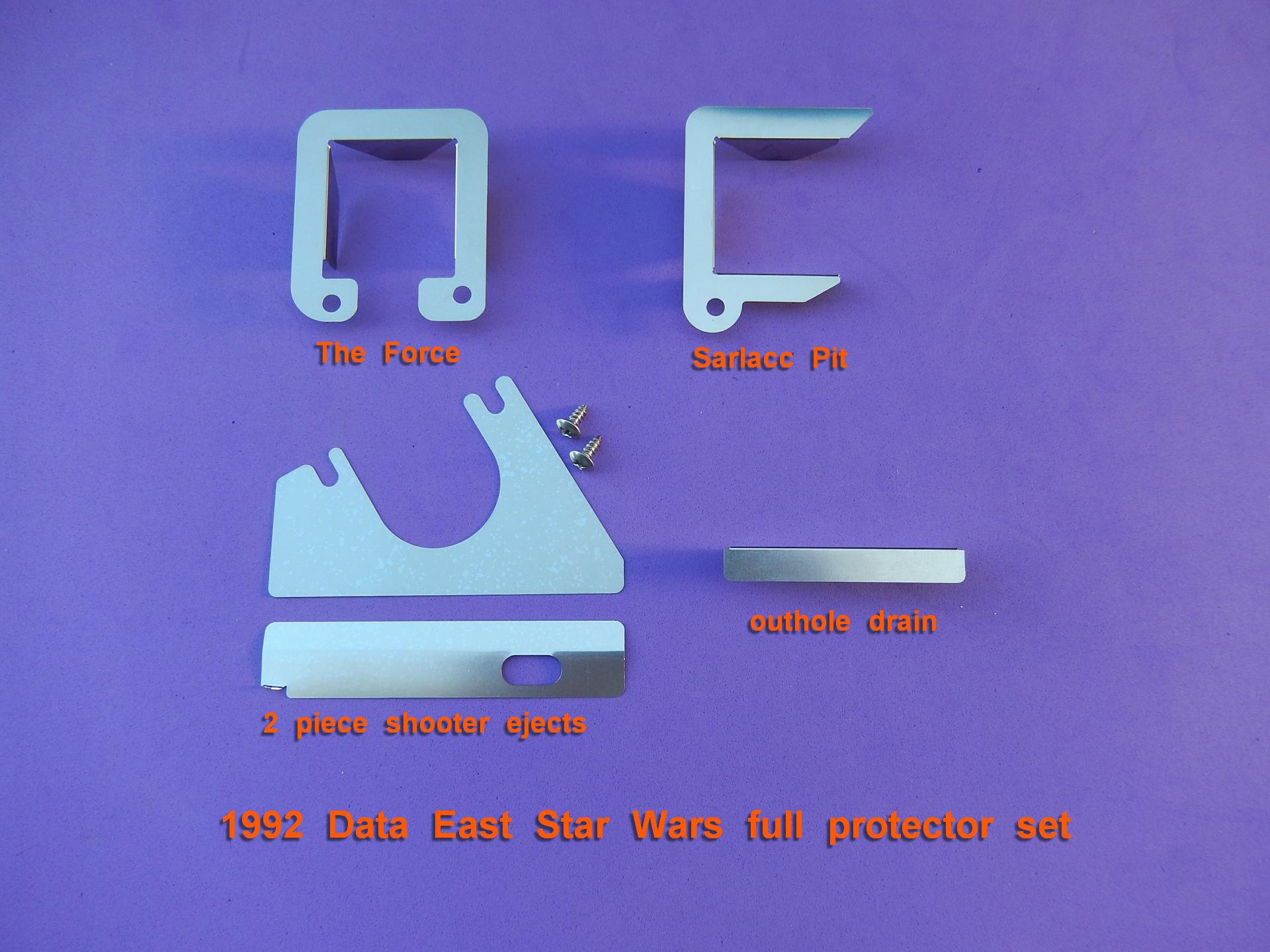

  The full Data East Star Wars protector set!

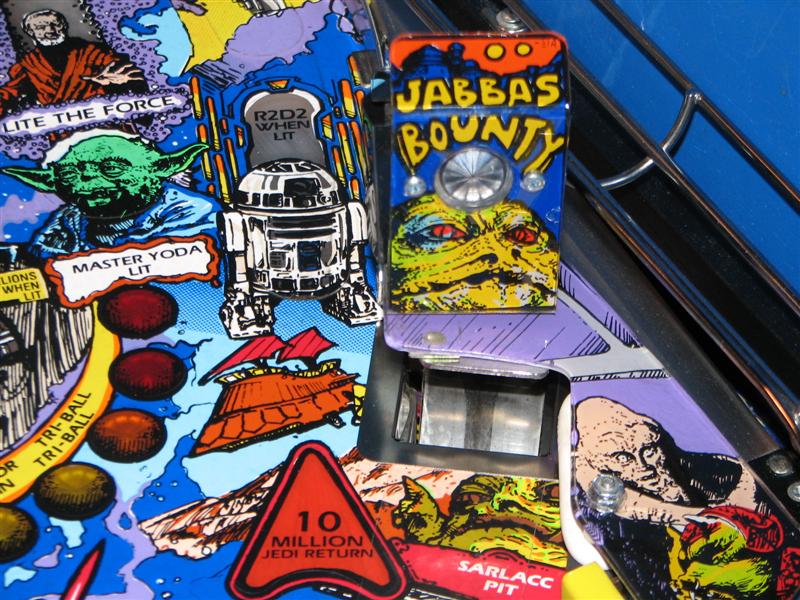

Unprotected "Sarlacc Pit"

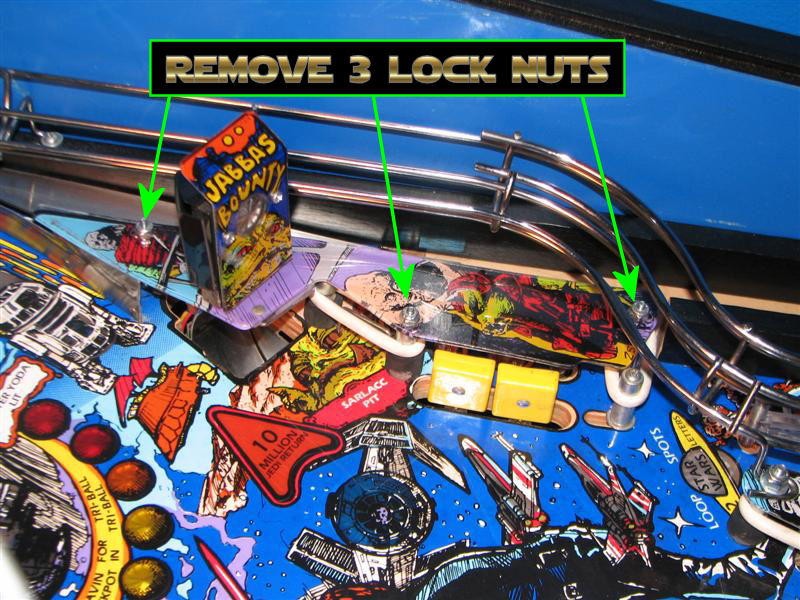

Step 1

Remove 3 lock nuts.

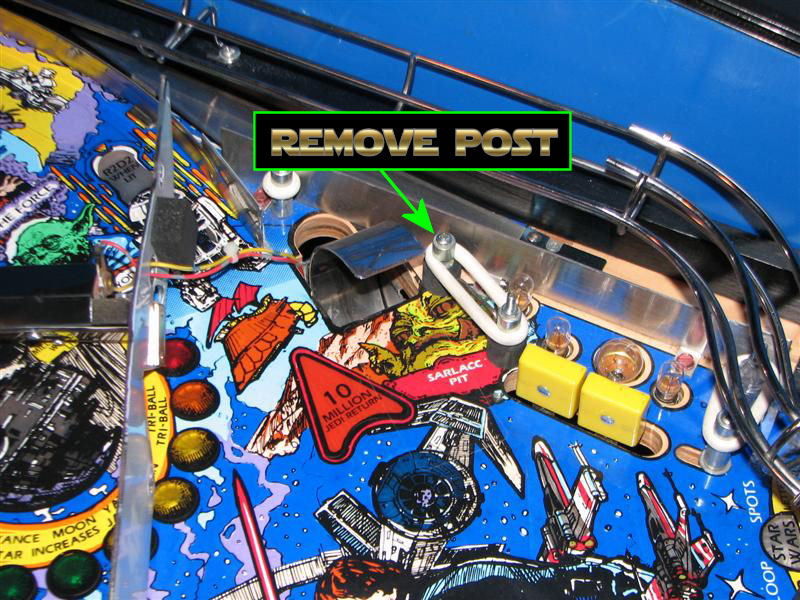

Step 2

Remove post.

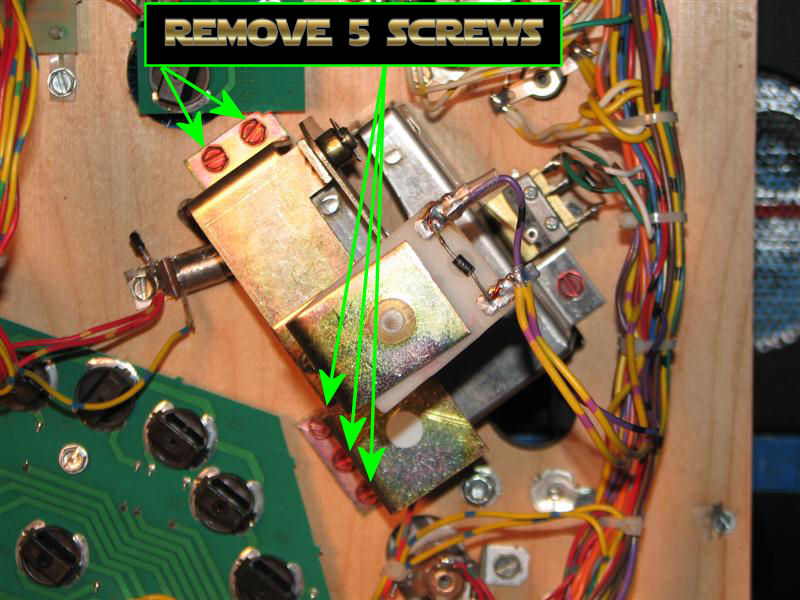

Step 3

Remove 5 screws on kicker.

Step 4

Remove 3 screws on scoop.

Step 5

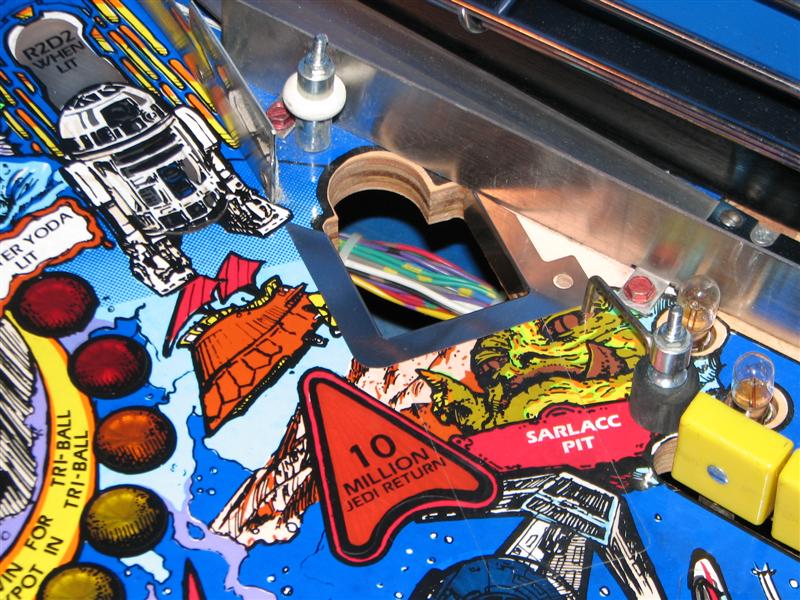

Install protector.

Step 6

Position tab away from screw hole.

Step 7

Replace post, scoop, kicker and plastic.

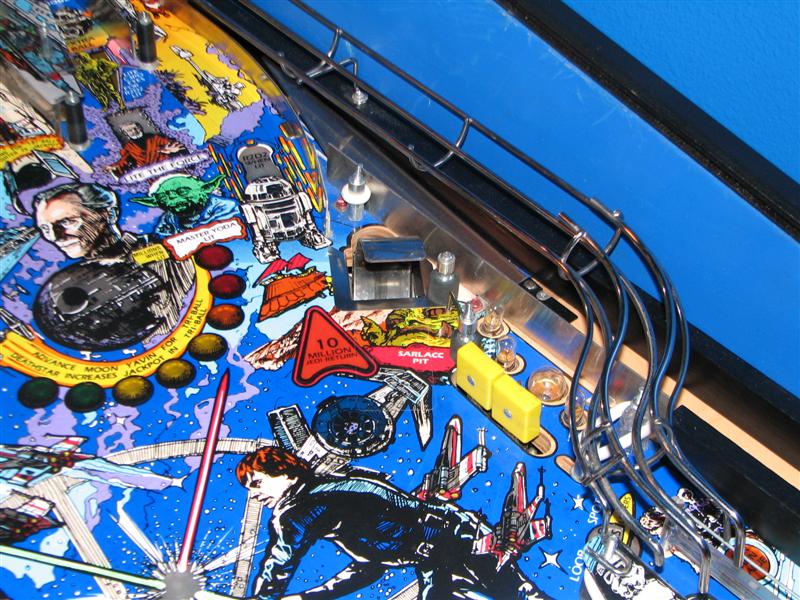

Much better!




Step 1

Remove 2 screws.

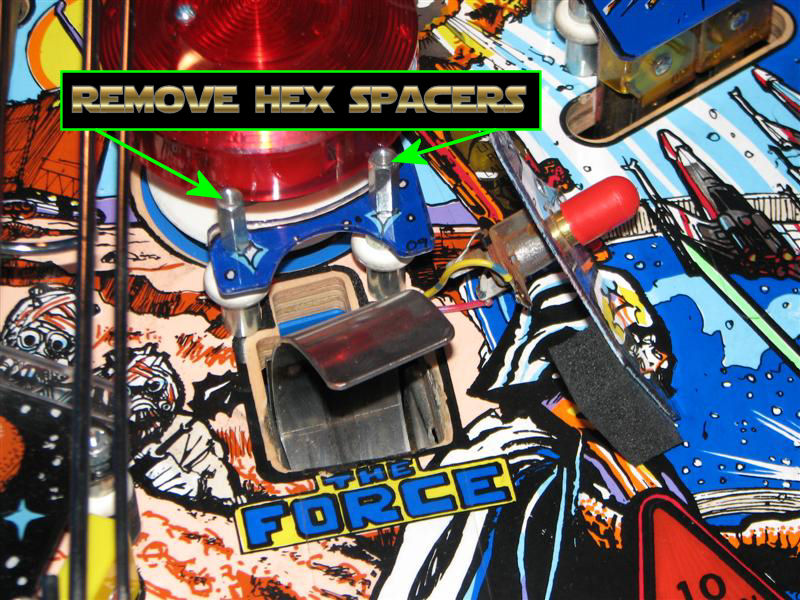

Step 2

Remove threaded hex spacers.

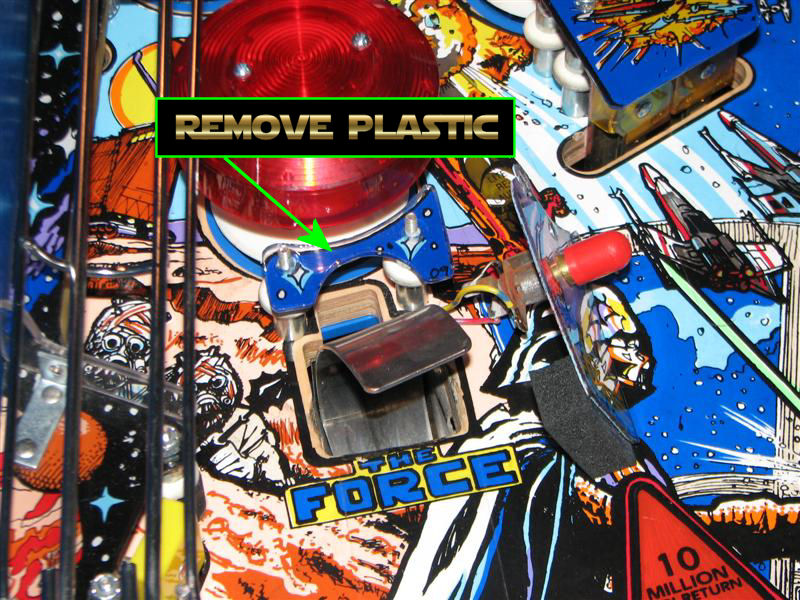

Step 3

Remove more plastic.

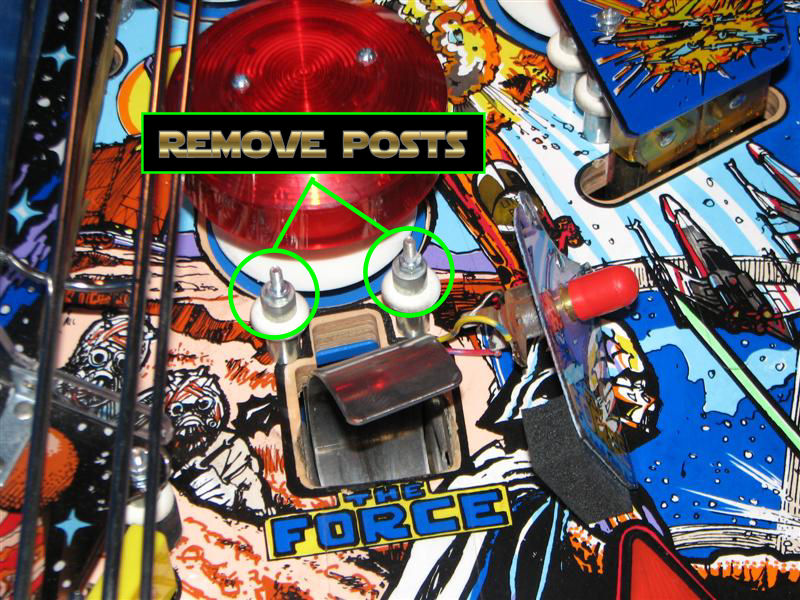

Step 4

Remove posts.

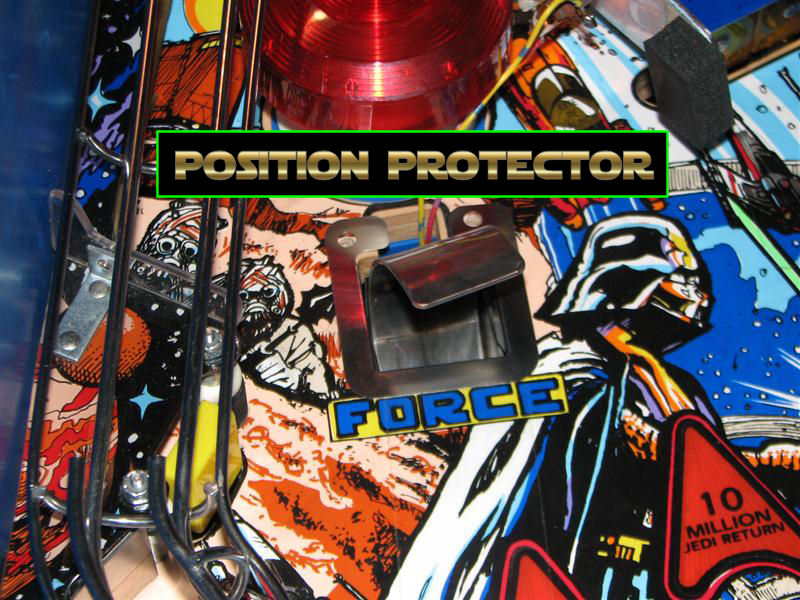

Step 5

Position the protector in the hole.

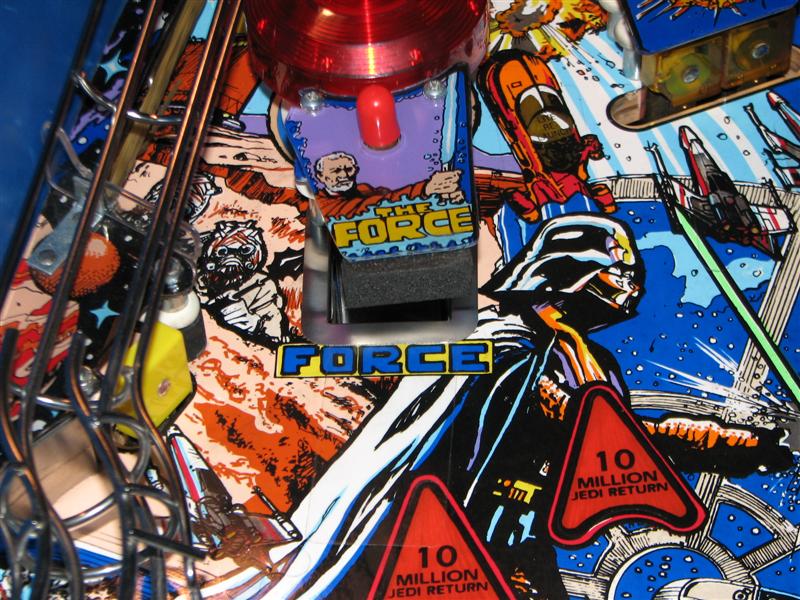

Step 6

Replace posts, plastic, spacers and Force plastic.

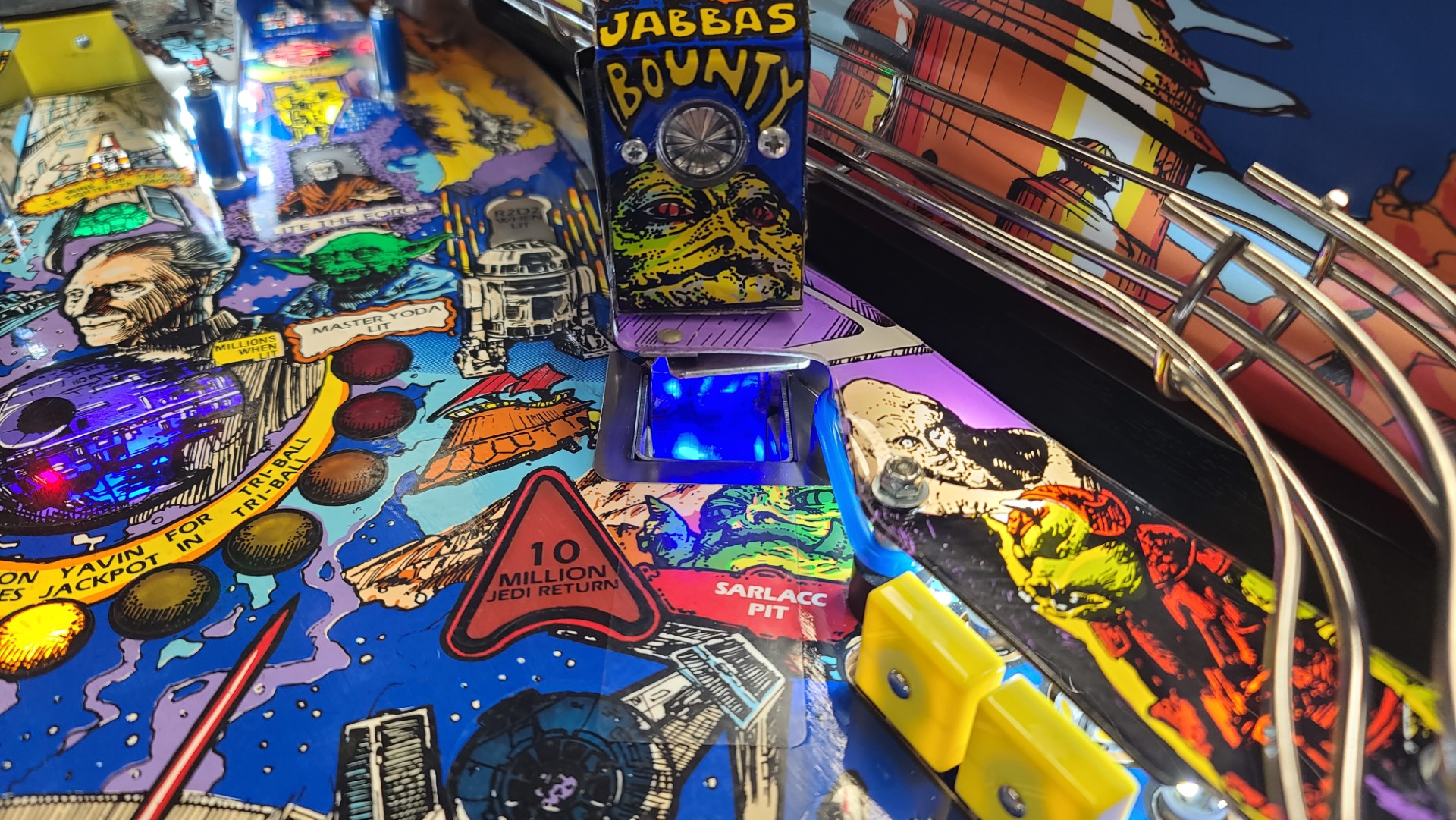

  Mike Ford installed my protectors and added blue LED scoop lighting - sweet!

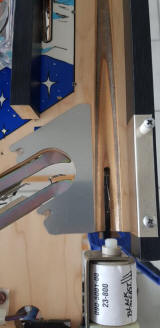

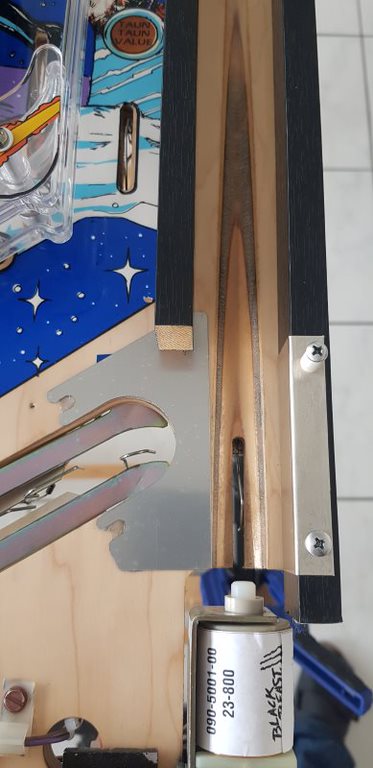

      		Loosen inner black rail and swing to the side

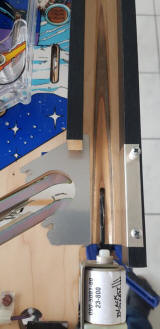

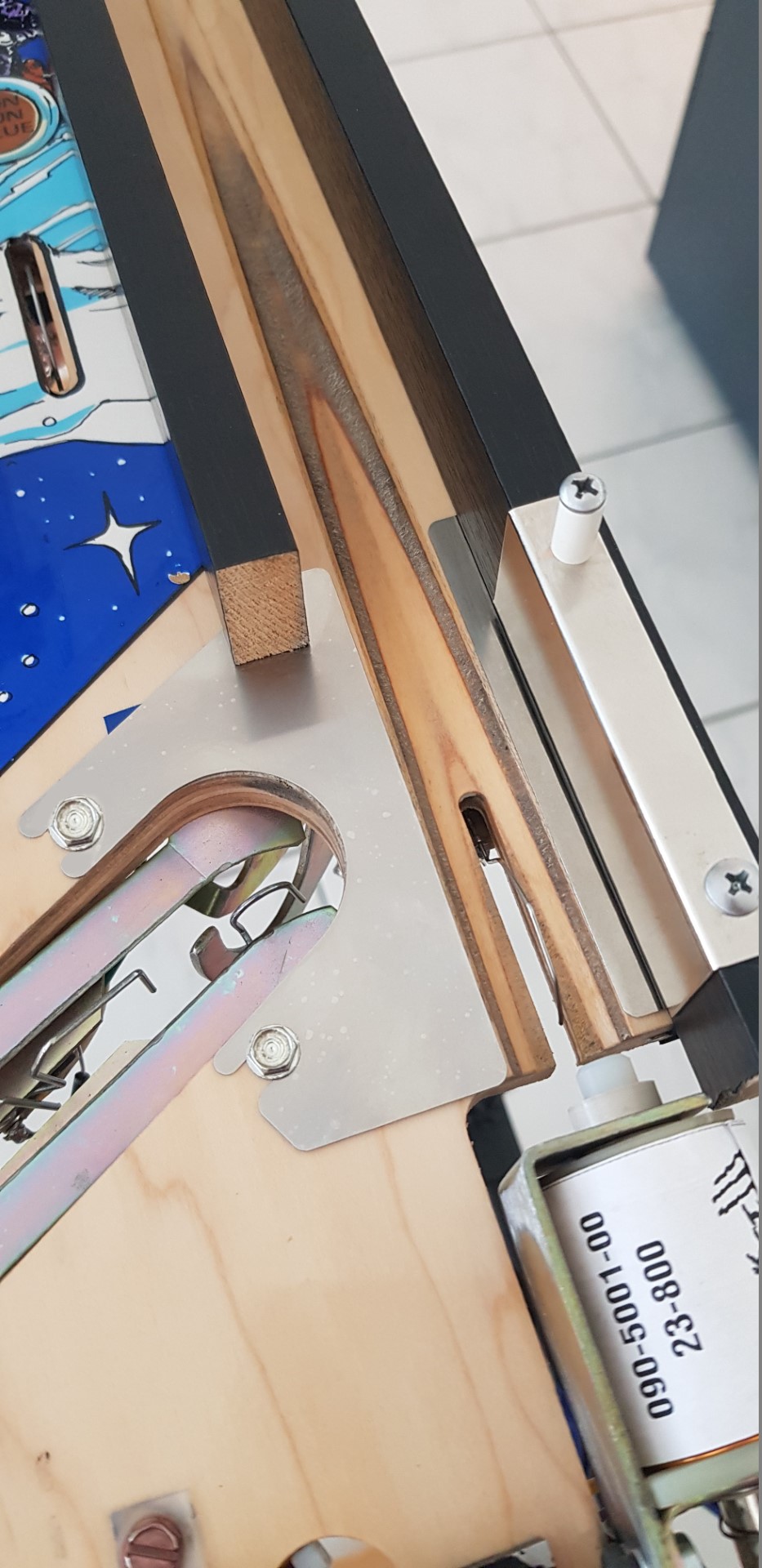

Place protector and swing black rail back in place
Install using included screws.
Do the same for right side eject.
Install guide here

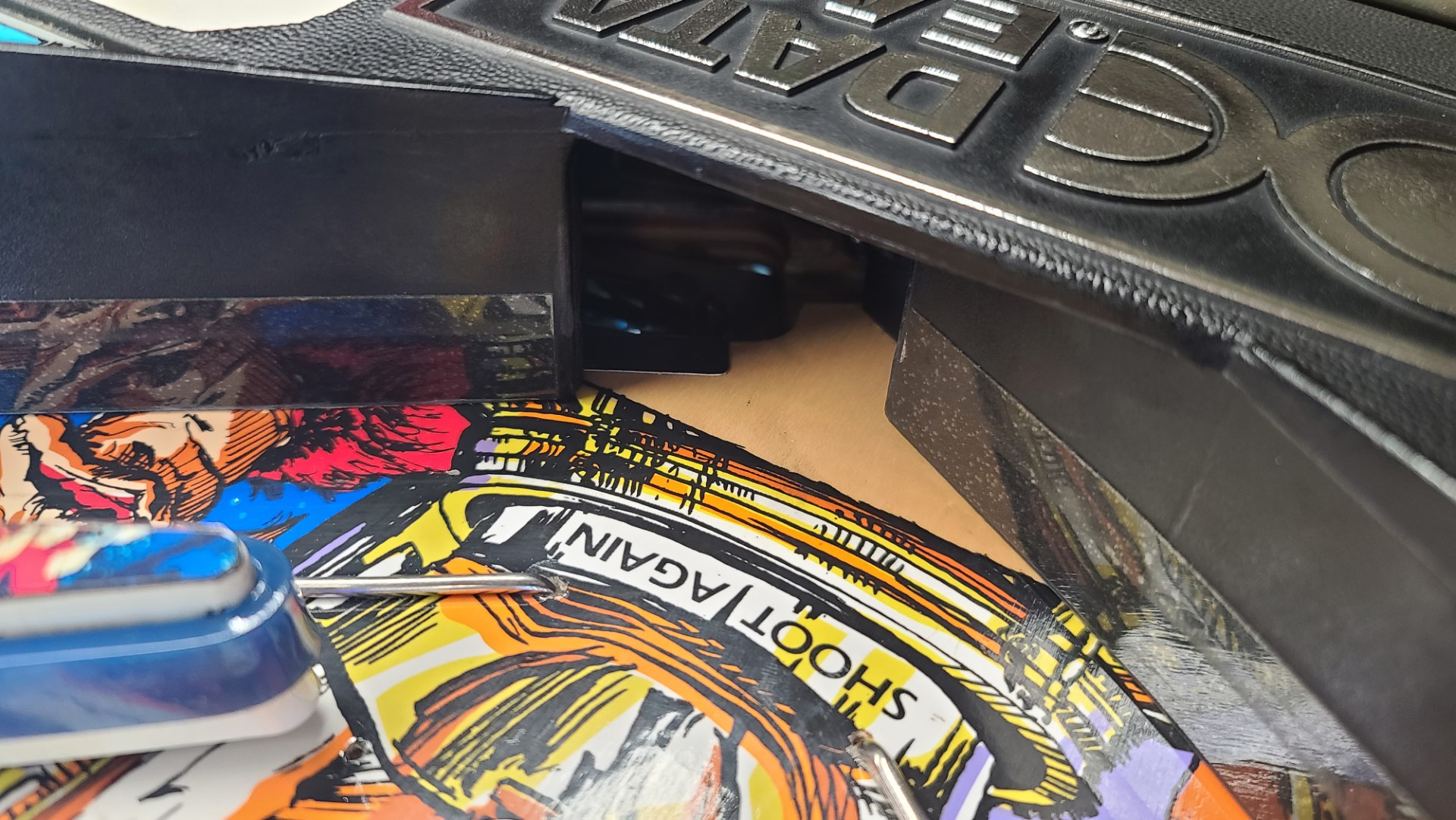

  Start to finish protection!

Install guide here
